Product Description
Bridge Girder Erecting Launcher Crane applies to highway, railway bridges to the construction site of bridge construction, its main function is to mention prefabricated good beam slice and delivered on prefabricated good piers.it and general meaning cranes have very big different, high safety requirements.
Bridge Girder Erecting Launcher Crane mainly consisted with main beam, cantilever, under guide beam, front and rear legs, auxiliary outrigger, hanging beam crane, cantilever crane and elecrto-hydraulic system. Applies to three different span single-span simply supported beam erection, with high operating efficiency.
Bridge Girder Erecting Launcher Crane is widely used in highway and railway construction This Machine is used for erecting concrete box girders for high speed (250km, 350km) passenger railway lines. This machine is suitable for equal span girders or different span girders which can be 20m, 24m and 32m, 50m. The rear part has two supports. One of the supports is "C" shape column with rotary and foldabletechnology. The "C" shape column technology saved the traverse space during traveling and which enables to travel through tunnels with the girder transfer vehicle.
Bridge Girder Erecting Launcher Crane applies to highway, railway bridges to the construction site of bridge construction, its main function is to mention prefabricated good beam slice and delivered on prefabricated good piers.it and general meaning cranes have very big different, high safety requirements.
Bridge Girder Erecting Launcher Crane is widely used in highway and railway construction This Machine is used for erecting concrete box girders for high speed (250km, 350km) passenger railway lines. This machine is suitable for equal span girders or different span girders which can be 20m, 24m and 32m, 50m. The rear part has two supports. One of the supports is "C" shape column with rotary and foldabletechnology. The "C" shape column technology saved the traverse space during traveling and which enables to travel through tunnels with the girder transfer vehicle.
Benefits
Best Quality
Fast Delivery
Global Service
Parameter
Technical parameters of bridge girder Launcher
MCJH50/200 | MCJH40/160 | MCJH40/160 | MCJH35/100 | MCJH30/100 | |
Lifting capacity | 200t | 160t | 120t | 100t | 100t |
Applicable span | ≤55m | ≤50m | ≤40m | ≤35m | ≤30m |
Applicable skew bridge angle | 0-450 | 0-450 | 0-450 | 0-450 | 0-450 |
Trolley lifting speed | 0.8m/min | 0.8m/min | 0.8m/min | 1.27m/min | 0.8m/min |
Rolley longitudinal moving speed | 4.25m/min | 4.25m/min | 4.25m/min | 4.25m/min | 4.25m/min |
Cart longitudinal moving speed | 4.25m/min | 4.25m/min | 4.25m/min | 4.25m/min | 4.25m/min |
Cart transverse moving speed | 2.45m/min | 2.45m/min | 2.45m/min | 2.45m/min | 2.45m/min |
Transportation capacity of bridge transport vehicle | 100t X2 | 80t X2 | 60t X2 | 50t X2 | 50t X2 |
Heavy load speed of bridge transport vehicle | 8.5m/min | 8.5m/min | 8.5m/min | 8.5m/min | 8.5m/min |
Bridge transport vehicle return speed | 17m/min | 17m/min | 17m/min | 17m/min | 17m/min |

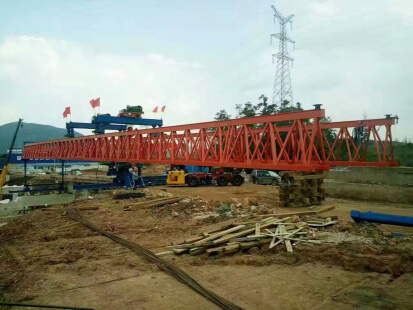

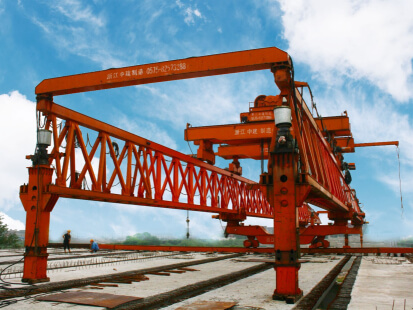

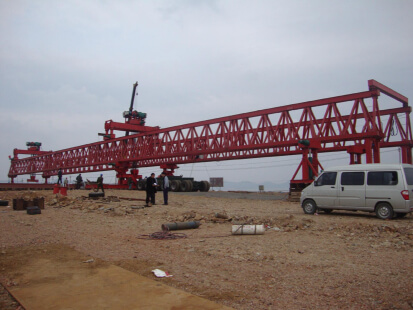

Customer Site
Packing and Shipping
We strictly manage packaging specifications and transportation requirements,Wooden pallets with plastic filmor according to your request.
FAQ
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
