Product Description

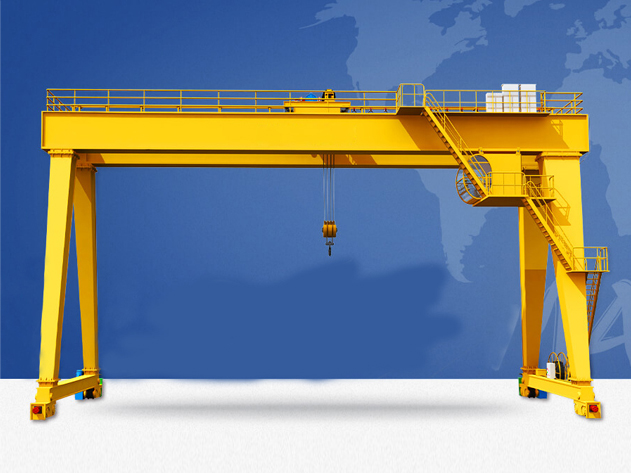

Europe type double girder gantry crane is made up of beam, trolley, crane traveling mechanism and electric system. Europe type double girder gantry crane utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required. All the procedures are finished in the operating room. Applies to the open warehouse or rail along for general handling and lifting work. Also can equipped with many lifting device for special work. Prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading, dust and other dangerous operations.
Europe type double girder gantry crane is widely used in plants, warehouses, material stocks to lift goods, and also can work with various special-purpose hoist in special operations.
The capacity: 5-100ton
The span : 18-35m
The working grade : A5
The working temperature: -20℃ to 40℃
Benefits
Best Quality
Fast Delivery
Global Service
Parameter
Technical parameters of bridge girder Launcher
| Mechanism | Item | Unit | Result | |
| Item | ||||
| Lifting capacity | ton | 5-100 | ||
| Lifting height | Main | m | 45211 | |
| Auxiliary | 10.72-13 | |||
| Span | m | 18-35 | ||
| Working environment temperature | °C | -20~40 | ||
| Speed | Lifting Speed | Main | m/min | 5.9-9.3 |
| Aux. | 8.5-16.7 | |||
| Trolley | 34-44.6 | |||
| Cab | 34.5-47.1 | |||
| Working system | A5 | |||
| Power source | three-Phase A C 50HZ 380V |

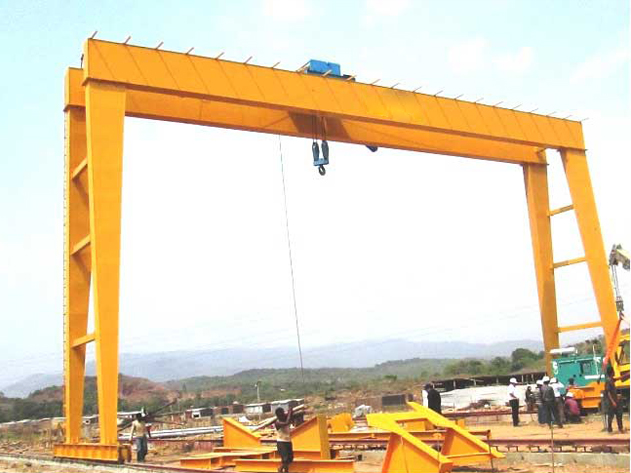

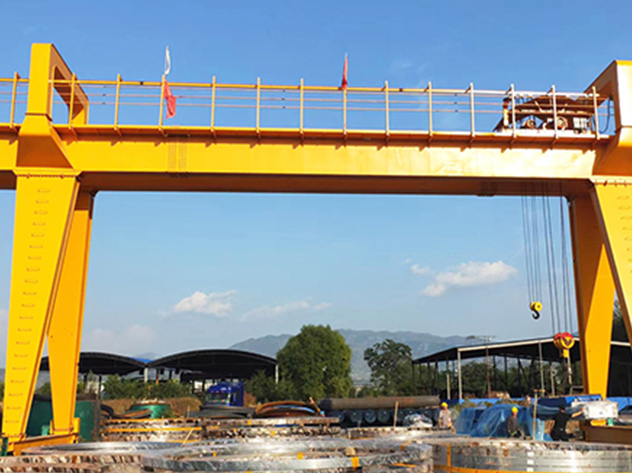

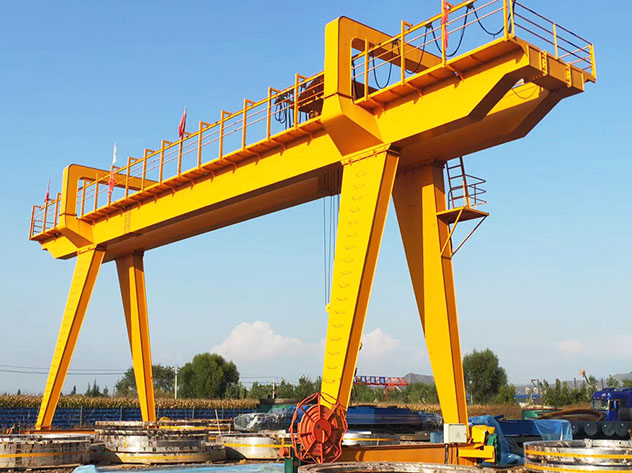

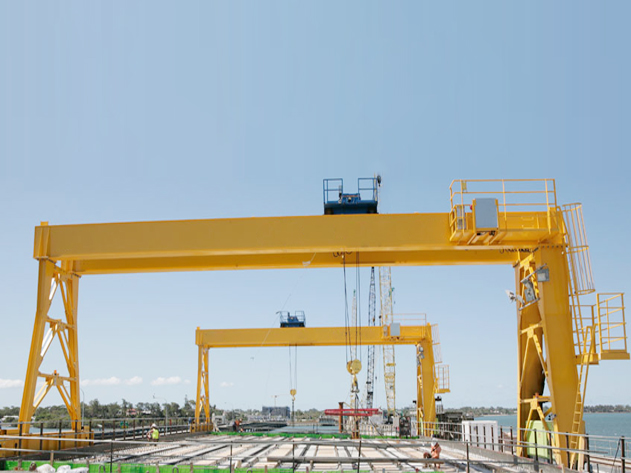

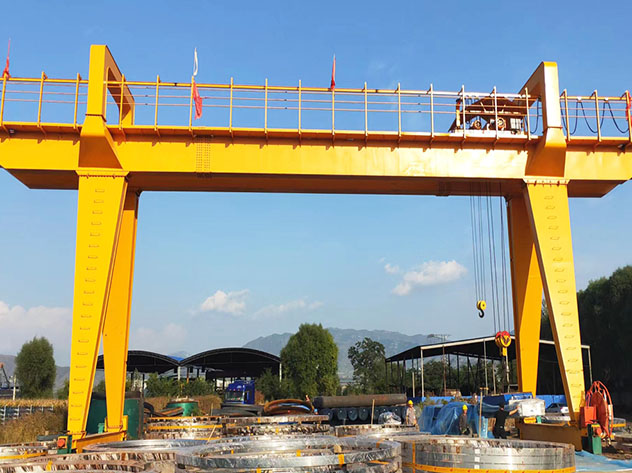

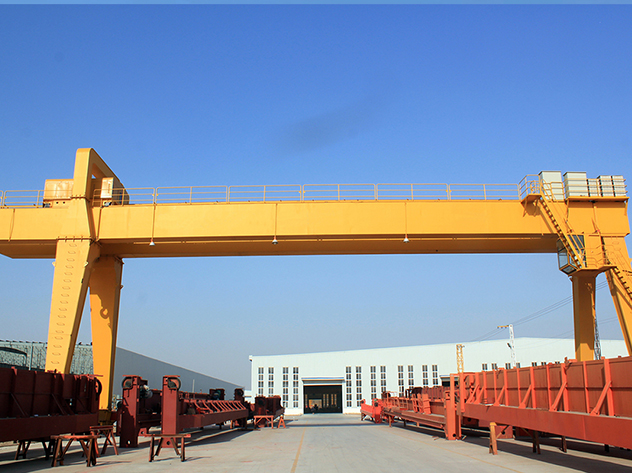

Customer Site
Packing and Shipping
We strictly manage packaging specifications and transportation requirements,Wooden pallets with plastic filmor according to your request.
FAQ
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
