Product Description

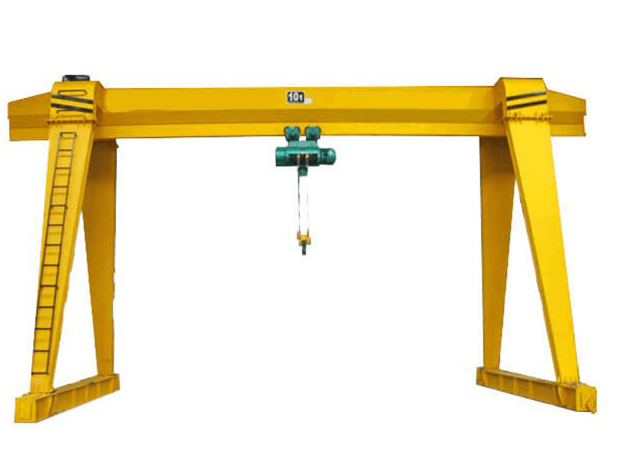

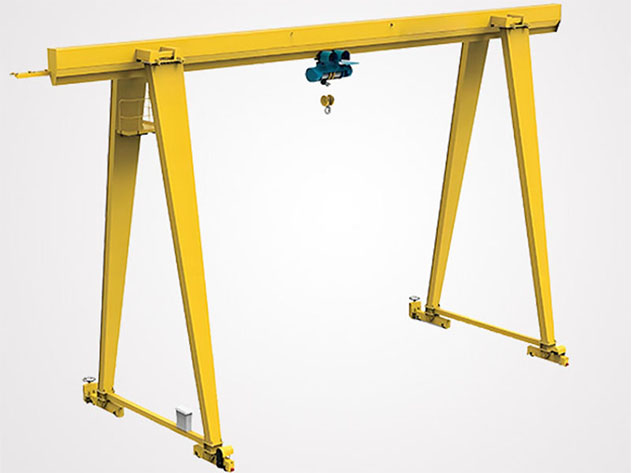

Electric hoist single girder gantry crane is consisted with gantry frame, main girder, legs, slide sill, lifting mechanism, travelling mechanism, and electric box. Widely used in workshop, storage, port and hydroelectric power station and some other outdoor place.
Electric hoist single girder gantry crane is used together with CD MD model electric hoist. It is a track travelling small and medium-sized crane. Its proper lifting weight is 3.2 to 32 tons. proper span is 12 to 30 meters its proper working temperature is -20℃to 40℃.
Features
- Reasonable structure and favorable performance.
- Smooth starting and stopping.
- Safe and reliable traveling, long life.
- Low noise, commodious cabin with good view.
- Easy installation and convenient maintenance.
- Excellent exchangeability for parts and components.
| Mechanism | Item | Unit | Result | |
| Item | ||||
| Lifting capacity | ton | 3.2-32 | ||
| Lifting height | m | 6 9 | ||
| Span | m | 12-30m | ||
| Working environment temperture | °C | -20~40 | ||
| Travelling mechanism | Travelling speed | Ground | m/min | 20 |
| Controlling Room | 20 | |||
| Lifting mechanism | lifting speed | m/min | 8 0.8/8 7 0.7/7 3.5 3 | |
| travelling speed | m/min | 20 | ||
| working system | A5 | |||
| power source | three-phase 380V 50HZ | |||
Benefits
Best Quality
Fast Delivery
Global Service

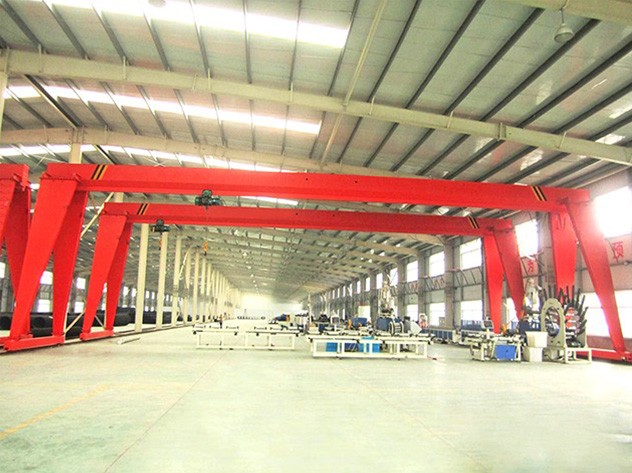

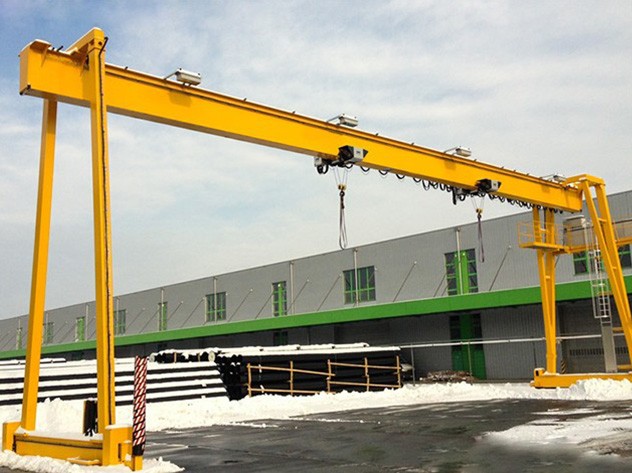

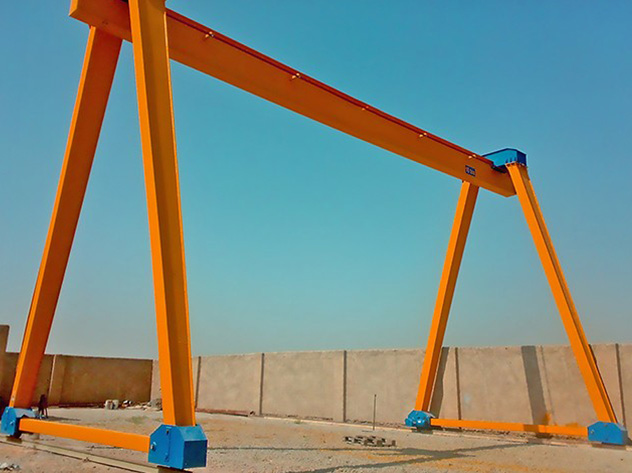

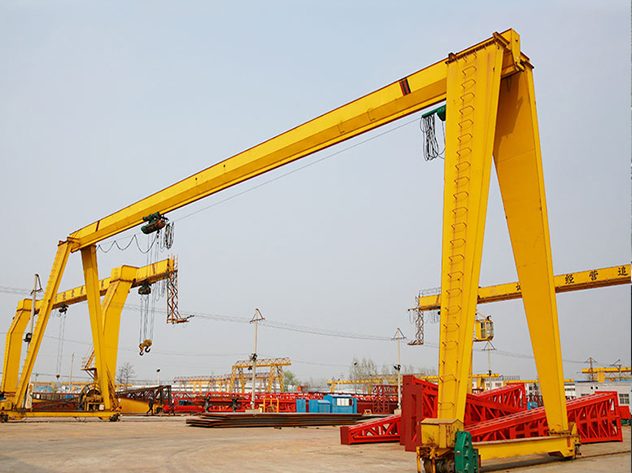

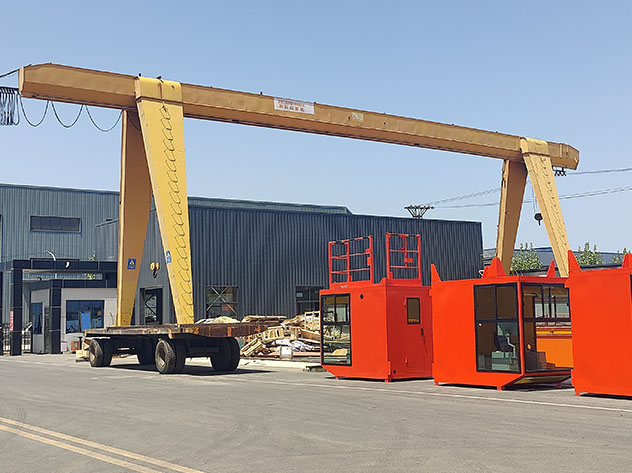

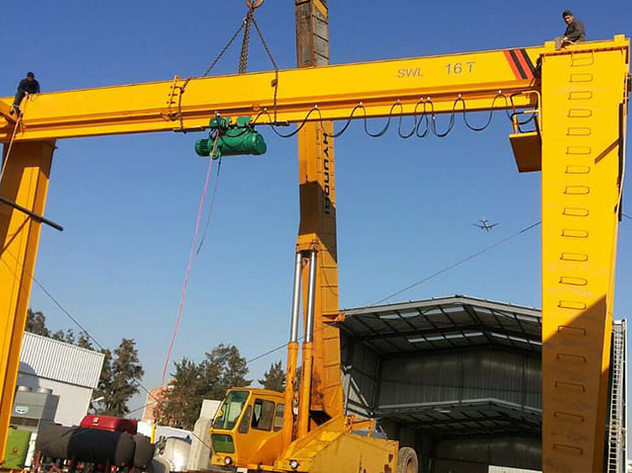

Customer Site
Packing and Shipping
We strictly manage packaging specifications and transportation requirements,Wooden pallets with plastic filmor according to your request.
