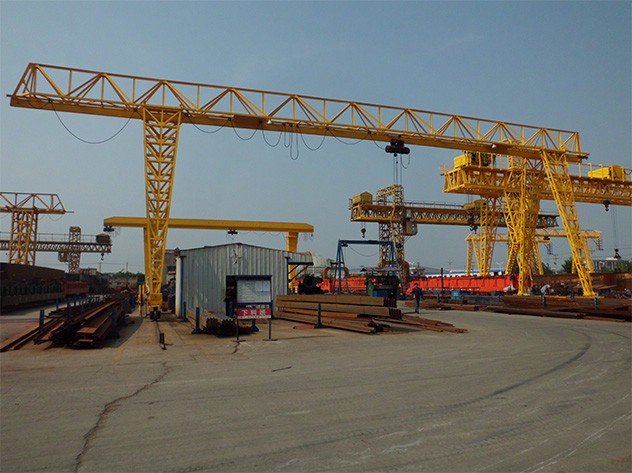

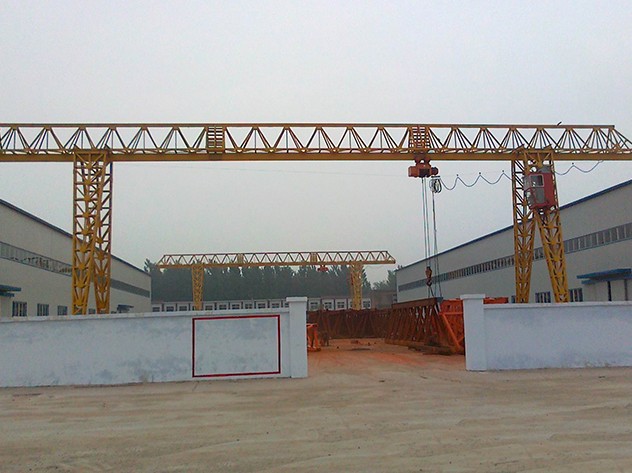

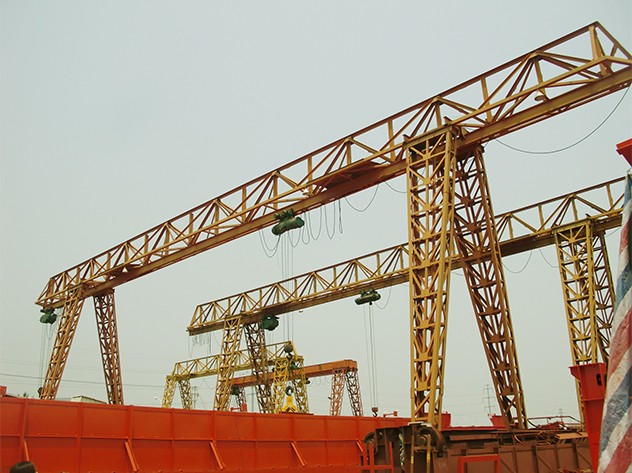

Truss type single girder gantry crane

Product Description

Truss type single girder gantry crane is consisted with gantry frame, main truss girder, legs, slide sill, lifting mechanism, travelling mechanism, and electric box. Widely used in workshop, storage, port and hydroelectric power station and some other outdoor place.

Truss type single girder gantry crane is used together with CD MD model electric hoist. It is a track travelling small and medium-sized crane. Its proper lifting weight is 3.2 to 32 tons. proper span is 12 to 30 meters its proper working temperature is -20℃to 40℃.

Parameters

Mechanism		Item	Unit	Result
Item
Lifting capacity			ton	3.2-32
Lifting height			m	6 9
Span			m	12-30m
Working environment temperature			°C	-20~40
Travelling mechanism	Travelling speed	Ground	m/min	20
		Controlling Room		20
Lifting mechanism	lifting speed		m/min	8 0.8/8 7 0.7/7 3.5 3
	travelling speed		m/min	20
working system			A5
power source			three-phase 380V 50HZ

Benefits



Best Quality

During the drilling equipment production, we strictly follow the regulations of the ISO9001: 2008 quality control system.



Fast Delivery

Strong factory, strong productivity, able to deliver on time, so you have no worries.



Global Service

We always provide people a complete solution focused of any business.

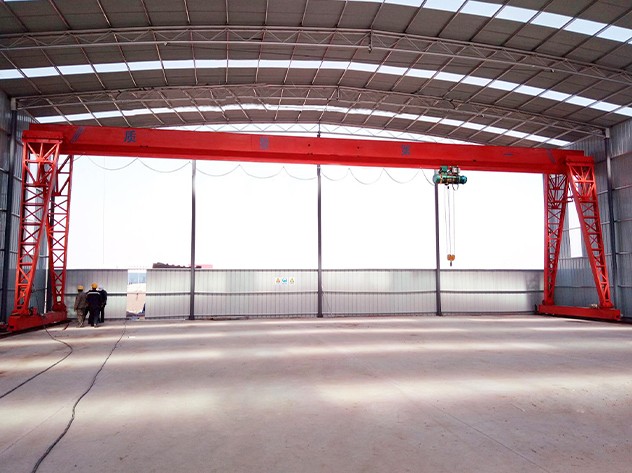

Customer Site

Packing and Shipping

We strictly manage packaging specifications and transportation requirements,Wooden pallets with plastic filmor according to your request.

FAQ

What are your prices?

Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.

Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.

Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

What is the average lead time?

For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
