Product Description

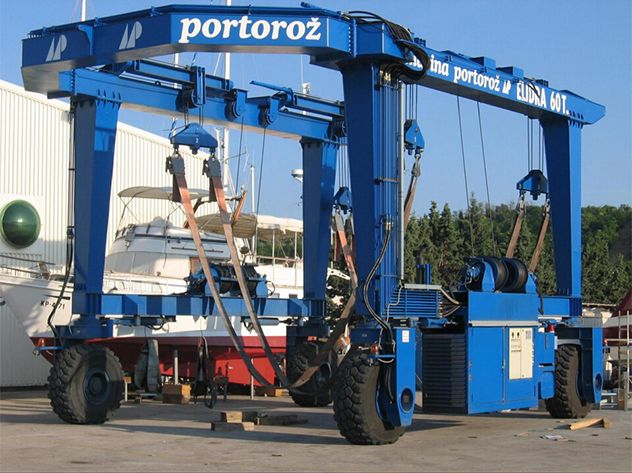

Hoist Travel Lift Boat Yacht crane includes the following items: main structure, traveling wheel block, hoisting mechanism,steering mechanism, hydraulic transmission system, electric control system, the main structure for the “U”type ,it can transfer the boat which the height surpass its height.
According to different requirements of our customers, the Boat Hoist Crane can handling different tons boat or yacht (10T-500T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat inside the water. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface.
It also can put the boat in sequence quickly with small gap between each two boats.
Electrical system uses PLC frequency adjustment which can easily control every mechanism.
Control Methods: Cabin control / remote control or Cabin control + remote control.
Hoist Travel Lift Boat Yacht crane is widely used for lifting boat in boat factory, outdoor repair shop, or lifting yacht, with stable performance, high efficiency and ease maintenance having proper safety
instructions and overload protection devices to maximizely ensure the safety of operational personnel and equipment.
Parameters
| SWL(Kg) | Span (m) | Lifting Height (m) | Crab Travel(m/min) | Lifting Speed (m/min) | Steeringmode | Steering angle |
| 5000+5000 (2m) | 12 | 6/9 | 10/15/20m/min | 8, 8/0.8 Standard Speed | Hydraulic-2Hydraulic-4 | 0-20°0-30°0-90° |
| 16 | ||||||
| 20 | ||||||
| 10000+10000 (2m) | 12 | 6/9 | 7, 7/0.7 Standard Speed | |||
| 16 | ||||||
| 20 | ||||||
| 20000+20000 (2m) | 12 | 6/9 | 3.5, 3.5/0.35 Standard Speed | |||
| 16 | ||||||
| 20 | ||||||
| 32000+32000 (1Am) | 12 | 6/9 | 3.5, 3.5/0.35 Standard Speed | |||
| 16 | ||||||
| 20 | ||||||
| 50000+50000 (1Am) | 12 | 6/9 | 4 Standard Speed | |||
| 16 | ||||||
| 20 |
Benefits
Best Quality
Fast Delivery
Global Service
Customer Site
Packing and Shipping
We strictly manage packaging specifications and transportation requirements,Wooden pallets with plastic filmor according to your request.
